Precision Engineering

Morris Brothers has a wealth of experience in engineering, coupled with a continuous investment strategy and a progressive and determined team we can offer all types of sub contract manufacturing.

Specialising in CNC milling and CNC turning of all types of materials from:

• Mild steel
• Stainless steel
• Aluminium
• Duplex / Super Duplex
• Phosphor Bronze

Whether it’s an old paper drawing or an up to date CAD file our experienced engineering team are fully conversant. Our CAD/CAM system is fully compatible with the following files:

• IGES
• DWG
• DXF
• DWF
• STEP
• IPT

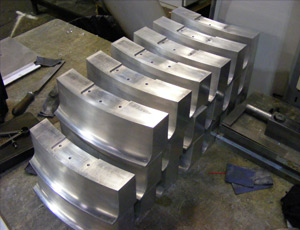

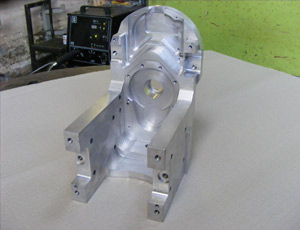

This level of expertise enables us to machine the most complex and sophisticated components at competitive prices.

Our services include:

• Design and build
• 1 off prototype work
• Precision engineering

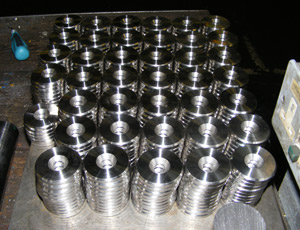

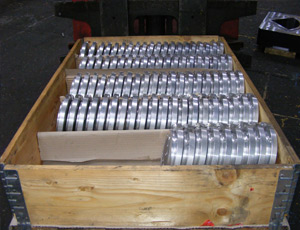

• Small / Medium batches
• Large Batches (including Jig and Fixture Manufacturing for efficient cycle times)
• Emergency breakdown facility

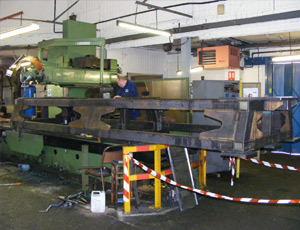

• Machining components up to 7 tonnes in weight

We are always looking for new challenges and building good working relationships with our customers so if you require more information on our services or if you have any question please contact us to discuss your requirements.

Capability

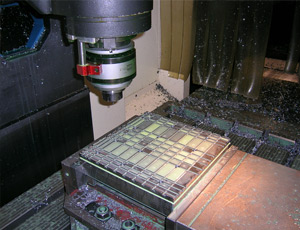

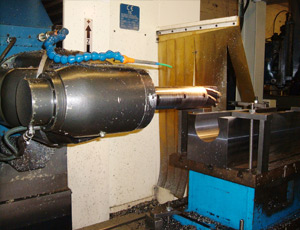

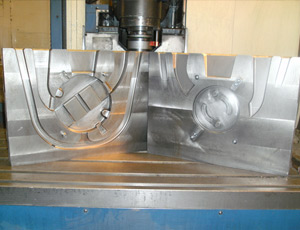

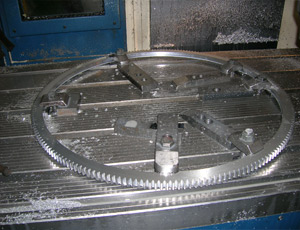

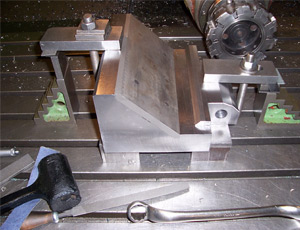

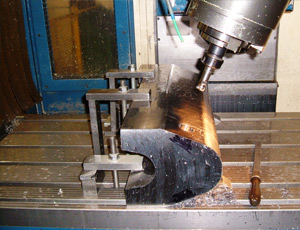

• PRECISION MILLING – CNC, HIGH SPEED AND CONVENTIONAL

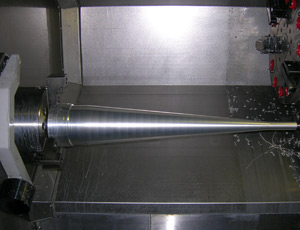

• TURNING – CNC AND CONVENTIONAL
• FABRICATIONS
• MIG WELDING
• DRILLING AND TAPPING – CNC, RADIAL AND PEDESTAL
• SAWING
• INSPECTION
• FITTING
• GUILLOTINING
• SPECIAL PURPOSE MACHINES – DESIGN AND BUILD
• SITE WORK AND INSTALLATION
• AUTO CAD INVENTOR & MECHANICAL DESKTOP 3D SYSTEM
• RTM 3D CAM SYSTEM
• ONE CNC XR3 TURNING SOFTWARE

Machining List and Capability

Milling Machine		X Axis (mm)	Y Axis (mm)	Z Axis (mm)
1	Huron sx bed type cnc millng machine	3000	1000	1050
2	Huron sx bed type cnc millng machine with ibag high speed milling head (max 30,000 rpm)	2400	730	1050
3	Correa cf17d bed type cnc millng machine with ibag high speed milling head (max 30,000 rpm)	2000	800	800
4	Haas vf6 vertical machining centre with auto (30) tool changer	1626	813	762
5	Haas vf4 vertical machining centre with auto (20) tool changer	1270	508	635
6	Haas vf4 vertical machining centre with auto (20) tool changer	1270	508	635
7	Haas vf4 vertical machining centre with auto (20) tool changer	1270	508	635
8	Haas tm2 vertical cnc milling machine	1016	406	406
9	Huron mu6 cnc millng machine with ibag high speed milling head (max 30,000 rpm)	1500	800	600
10	Huron nu5 milling machine with d.r.o.	1300	700	500
11	Omz cnc 6 turret drilling and tapping machine	1000	400	500
	Fully programmable 4th axis compatible with all haas machining centre
12	Haas TM2P vertical cnc milling machine centre with auto (10) tool changer	1016	406	406

Plasma cutting services
Escoo Pro Cut 1050	3M x 1.5M Sheet Capacity. Cutting up to 25mm thickness

Lathes
1	HAAS SL 30 TURNING CENTRE	CHUCK SIZE = 254mm (10”) BAR CAPACITY = 76.2mm (3”) BETWEEN CENTRES = 990.6mm (39”) MAX CUTTING DIA = 431.8mm (17”) MAX CUTTING LENGTH = 863.6mm (34”) TURRETS = 12 AUTOMATIC BAR PULLER PROGRAMMABLE TAILSTOCK RIGID TAPPING
2	HAAS ST 30 TURNING CENTRE	CHUCK SIZE = 254mm (10”) BAR CAPACITY = 76.2mm (3”) BETWEEN CENTRES = 762mm (30”) MAX CUTTING DIA = 533mm (21”) MAX CUTTING LENGTH = 660mm (26”) TURRETS = 12 AUTOMATIC BAR PULLER PROGRAMMABLE TAILSTOCK RIGID TAPPING
3	MANUAL JOBBING LATHE
